Process

Robotic Pipe Lining (Ambient Control Equipment Diagram)

Clean and line complicated pipe geometry

Spray-In 6 ,24, and 72" Pipe

2 min. & 18 sec.

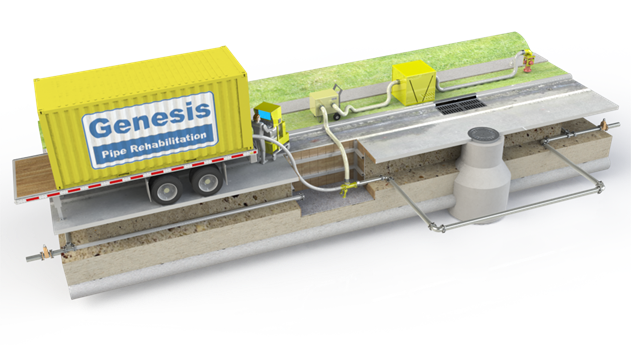

Typical Genesis Pipe Rehabilitation robotic pipe lining set up

Complicated Geometry

<------- Lining Video

Mouse Over Numbers

Example: Potable or Fire Flow Distribution Lines

Post Welding

Typical Box Cut Requirement

Typical box cut requirment for pipe access

A minimum excavation area of (A),6 ft or 2m x (B),10 ft or 3.05 m is required to accomplish the cleaning and lining work. The depth (C),of the access pit should extend a minimum of 1.5 ft ,or 0.45 m below the bottom of the exposed host pipe. Note, the host pipe used for tool entry should extend a minimum of 15 inches into the pit area after cutting. Each work area should have approximately four inches of #57 stone aggregate installed for drainage, a well/drainage basin should be located in the lowest point of the work area. The outflow should be large enough to allow a 2-4 inch suction line connection for dewatering.

New Construction
